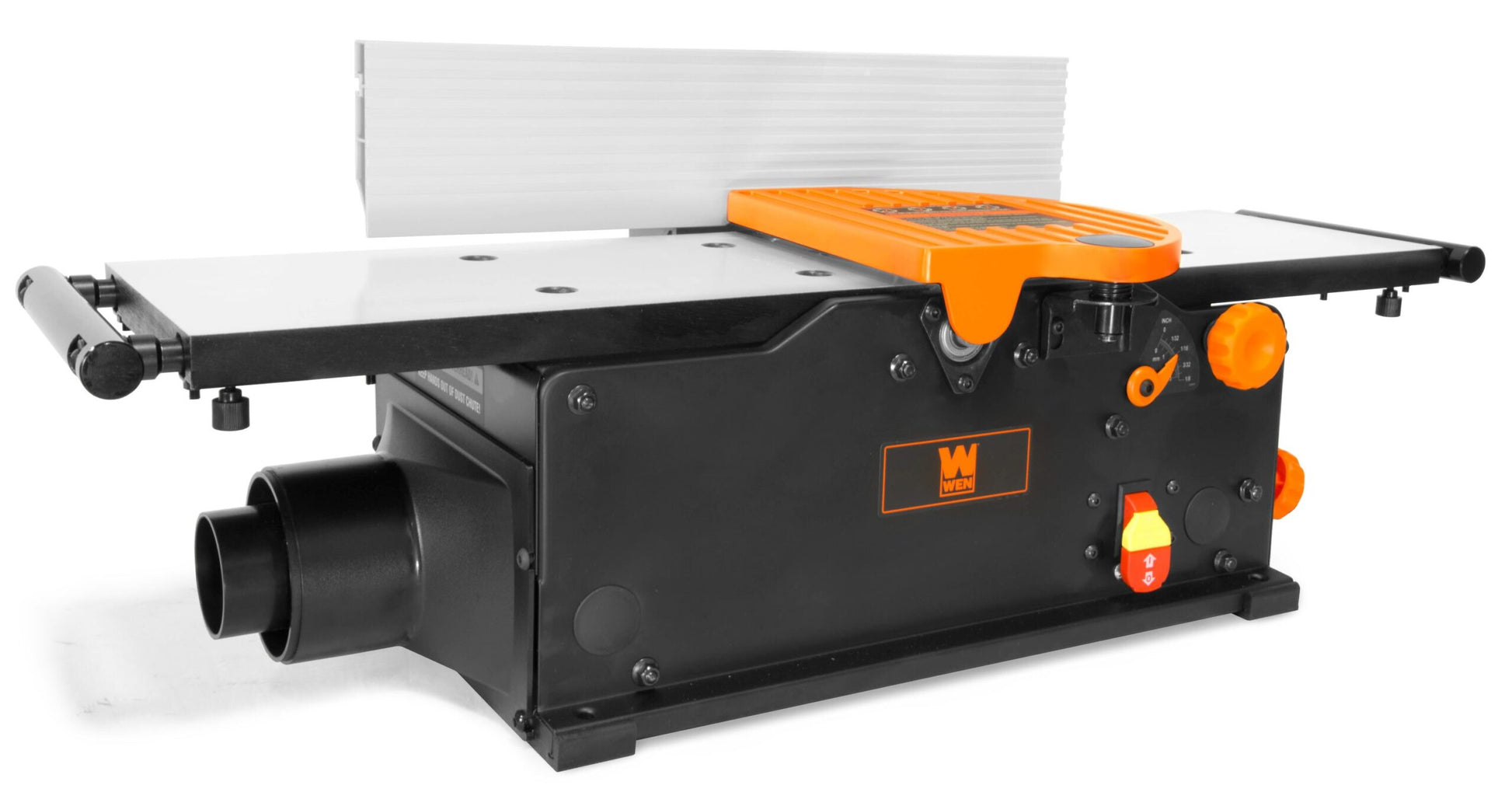

WEN 10-Amp 8-in Spiral Benchtop Jointer with Extendable Table
Remember when you had a perfectly square jointer to flatten out your boards and workpieces? Maximize precision with the WEN 8-Inch Spiral Benchtop Jointer. Our spiral cutterhead utilizes 16 staggered HSS blades to provide a perfect finish to hard and soft woods alike, while the powerful 10-amp motor rotates the cutterhead up to 12,000 times per minute. Adjust the infeed table to remove 0 to 1/8-inch of material with each pass, with a reliable depth-of-cut scale for maximum accuracy. The spacious table measures in at 33 by 8 inches with support arms that extend up to 51 inches for longer workpieces. Bevel the fence up to 45 degrees to create angled cuts along the faces of your boards. The spring-loaded blade guard helps protect against accidental injury, only exposing a limited section of the cutterhead during jointing operation. This package also includes two push blocks for safer jointing and an onboard dust port for minimal cleanup. Compatible with the WEN BP510H Replacement Spiral Blades. And, because it’s a WEN product, the WEN 8-Inch Benchtop Jointer comes backed by a two-year warranty, a stocked inventory of replacement parts, and a friendly customer help line, all to make sure you remember WEN.

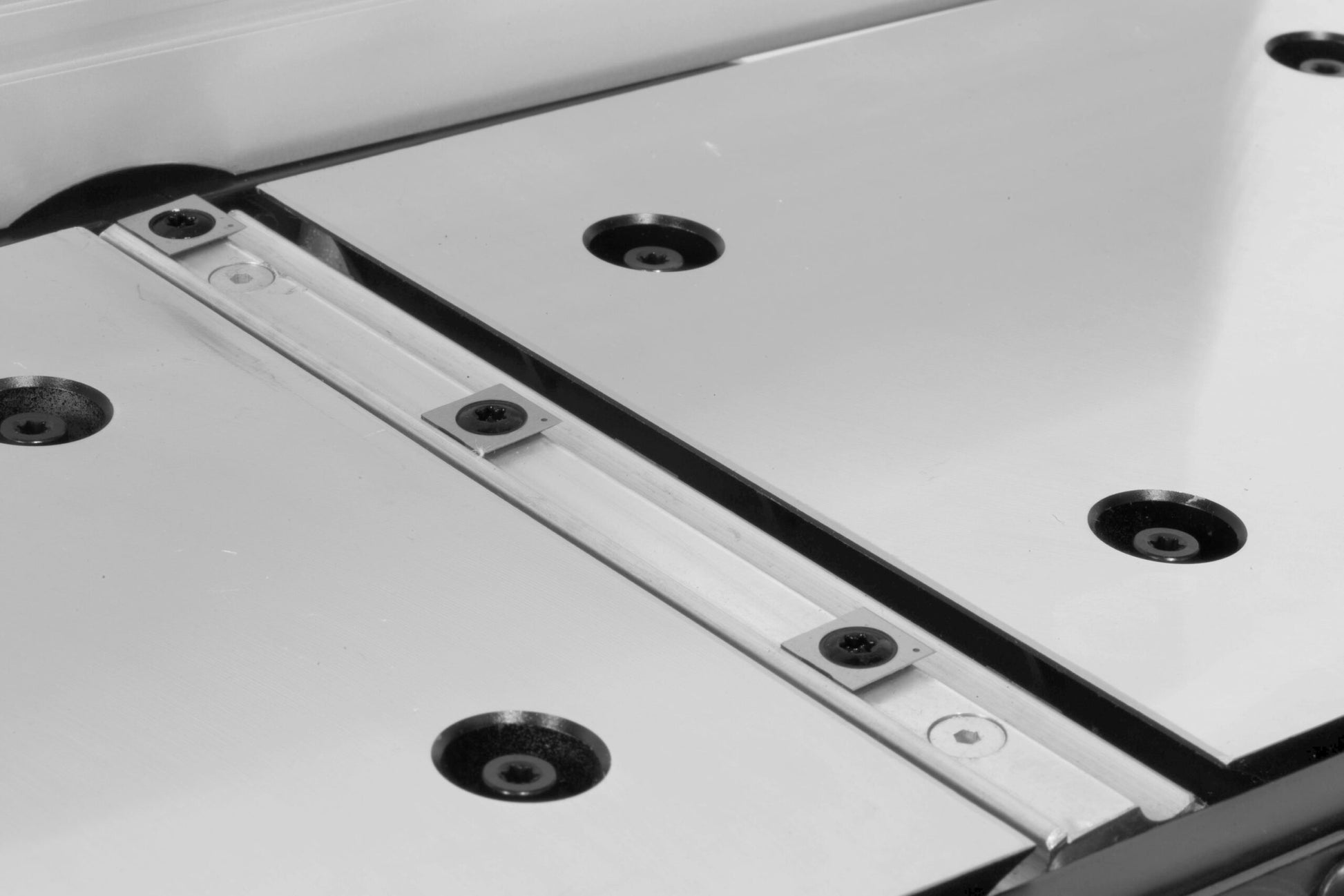

- Spiral cutterhead system utilizes 16 staggered HSS blades for an ultra fine finish

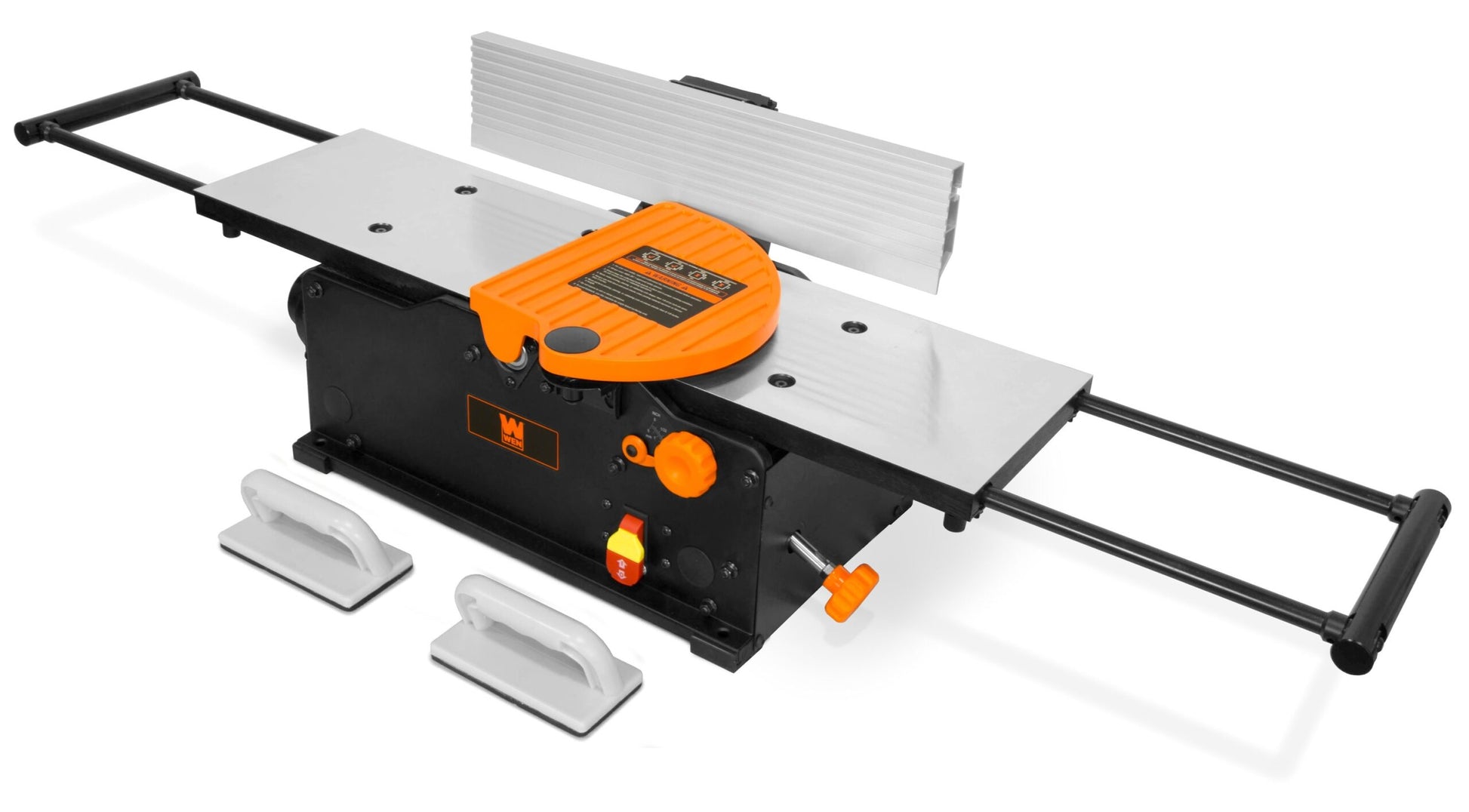

- Features a spacious 33-by-8-inch table with support arms that extend up to 51 inches
- Remove 0 to 1/8 of an inch of material with each pass
- Adjustable 19-3/4 by 4-1/4-inch fence bevels up to 45 degrees
- Includes an onboard depth-of-cut scale, two push blocks, 2-1/2 and 4-inch dust ports, and a two-year warranty
Specifications
| General | |||
|---|---|---|---|
| Color/Finish Family | Black | ||
| Dimensions | |||
|---|---|---|---|
| Adjustable Depth Stops | No | Maximum Board Thickness (Inches) | 20 |
| Assembled Height (Inches) | 12.5 | Maximum Board Width (Inches) | 8 |
| Assembled Width (Inches) | 34.5 | Maximum Cutting Depth (Inches) | 0.125 |
| Blade Length (Inches) | 0.56 | Rabbeting Depth (Inches) | 0 |
| Depth Adjustment | Yes | Table Length (Inches) | 51 |
| Depth Measurement System | Yes | Table Width (Inches) | 8 |
| Fence Height (Inches) | 4.25 | Tool Weight (lbs.) | 55.1 |
| Fence Length (Inches) | 19.75 | ||
| Features | |||
|---|---|---|---|
| Accessories Included | Yes | Lock On Switch | Yes |
| Amperage (Amps) | 10 | Maximum RPM | 12000 |
| Blade Material | Steel | Number of Blades | 16 |
| Dust Collection | Yes | Positive Stops | No |
| Fence Material | Aluminum | Quick-Change Knife System | No |
| Fence Tilt | Yes | Table Material | Aluminum |
| Fence Tilt Range in Degrees | 45 | Variable Speed | No |
| Heavy Duty Stand Included | No | Voltage (Volts) | 120 |
| Helical Head | Yes | ||
| Warranty | |||
|---|---|---|---|
| Warranty | 2-year limited | ||
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | |||
