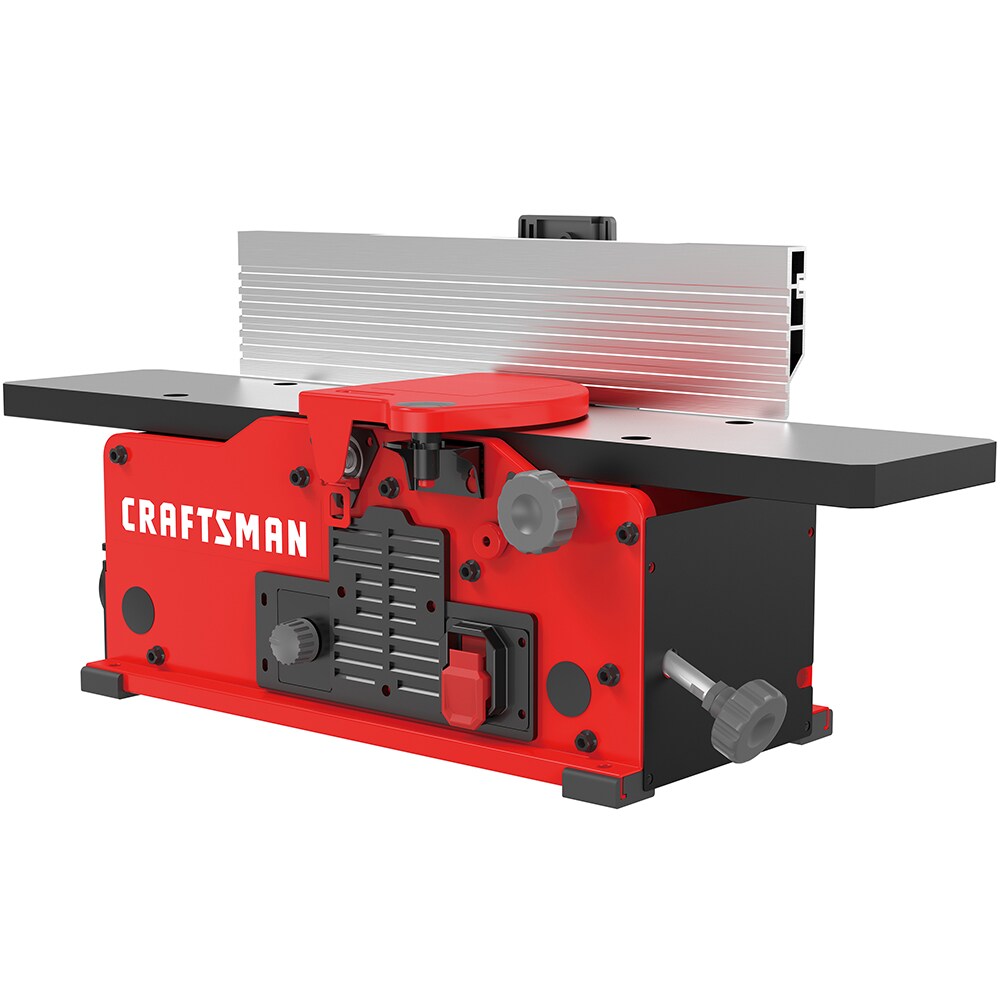

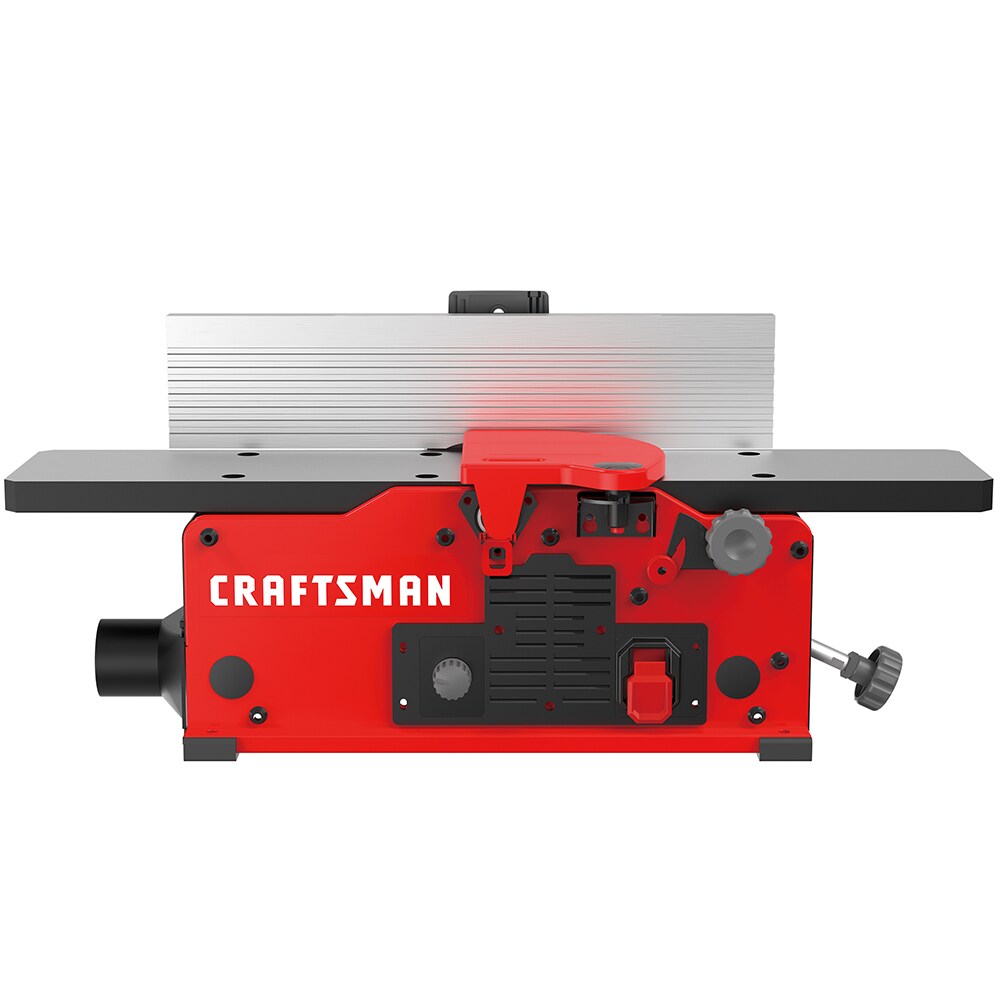

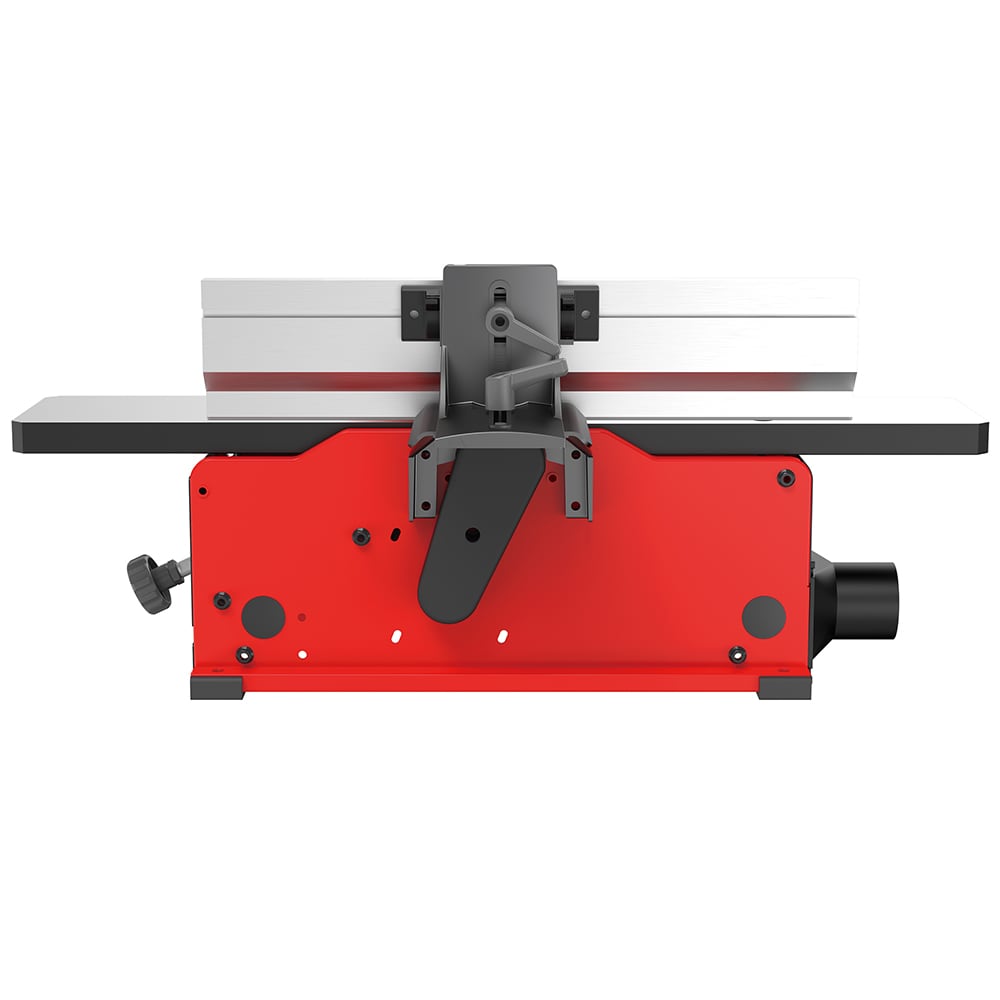

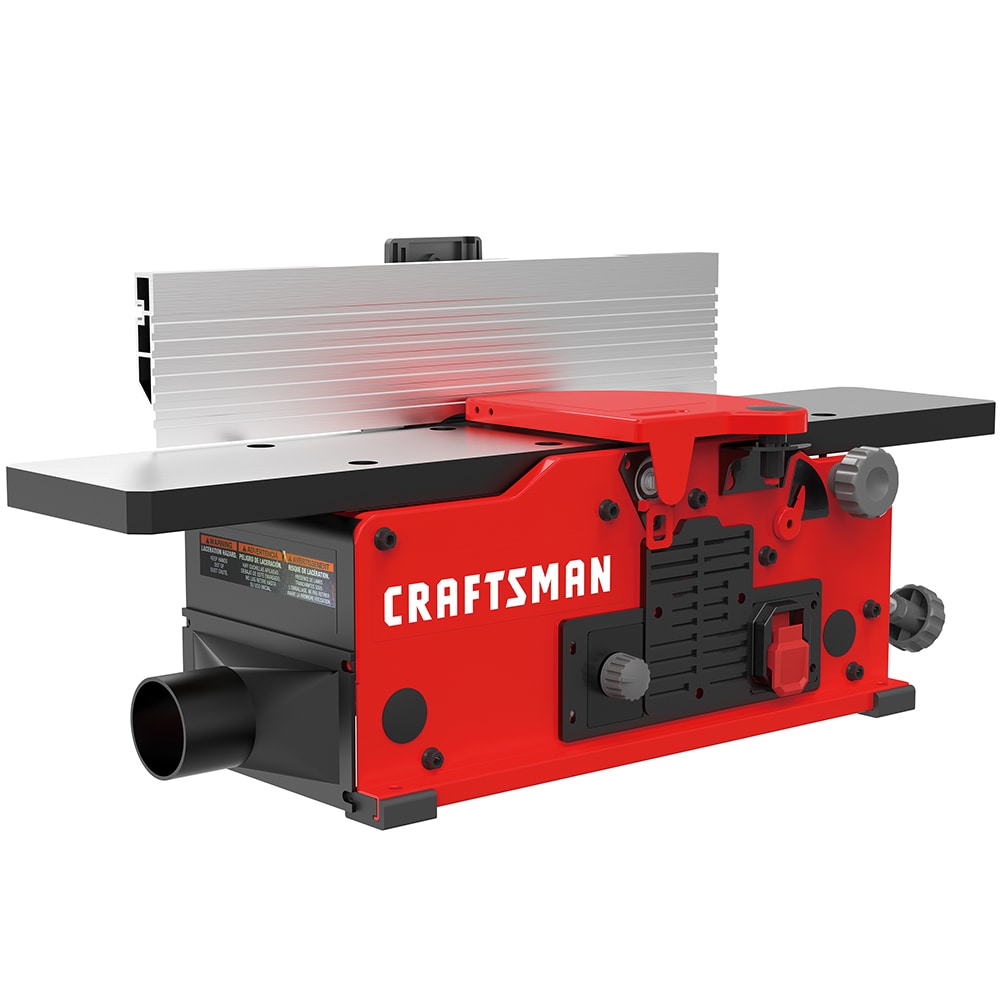

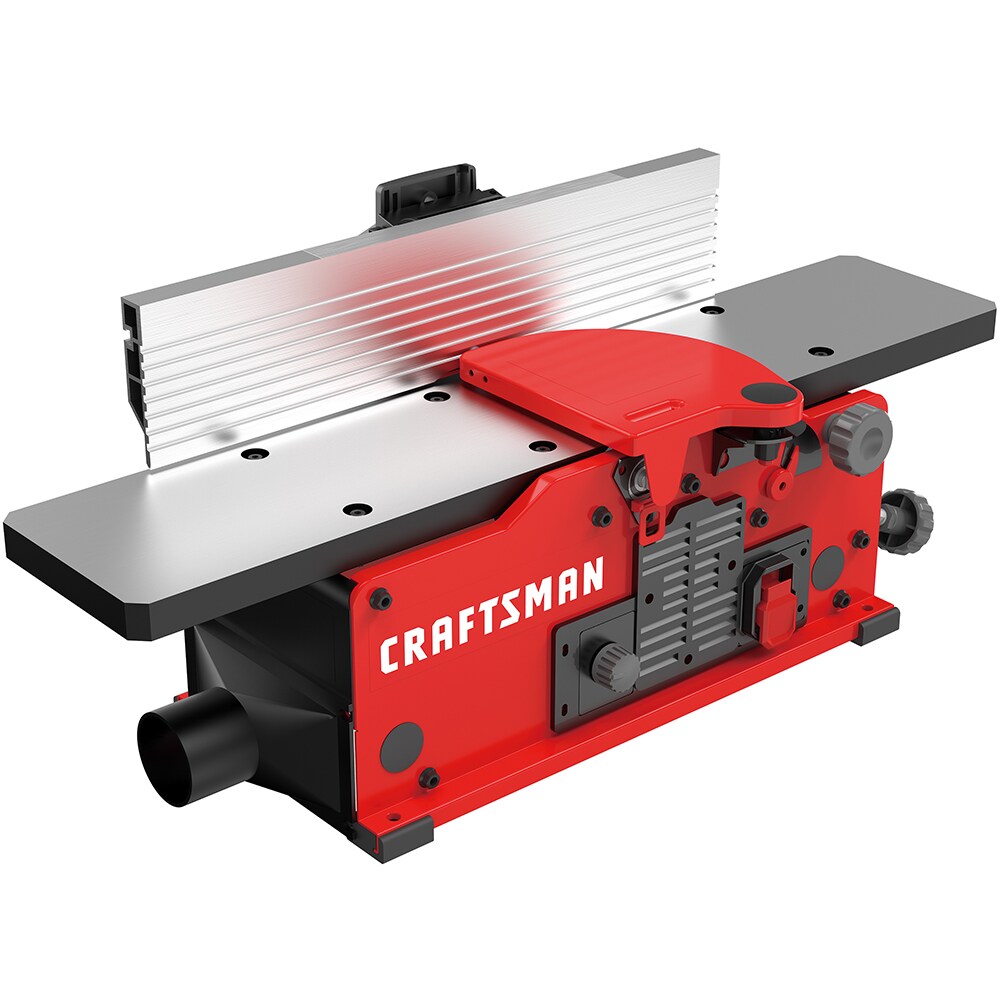

CRAFTSMAN 10 Amps Bench Jointer

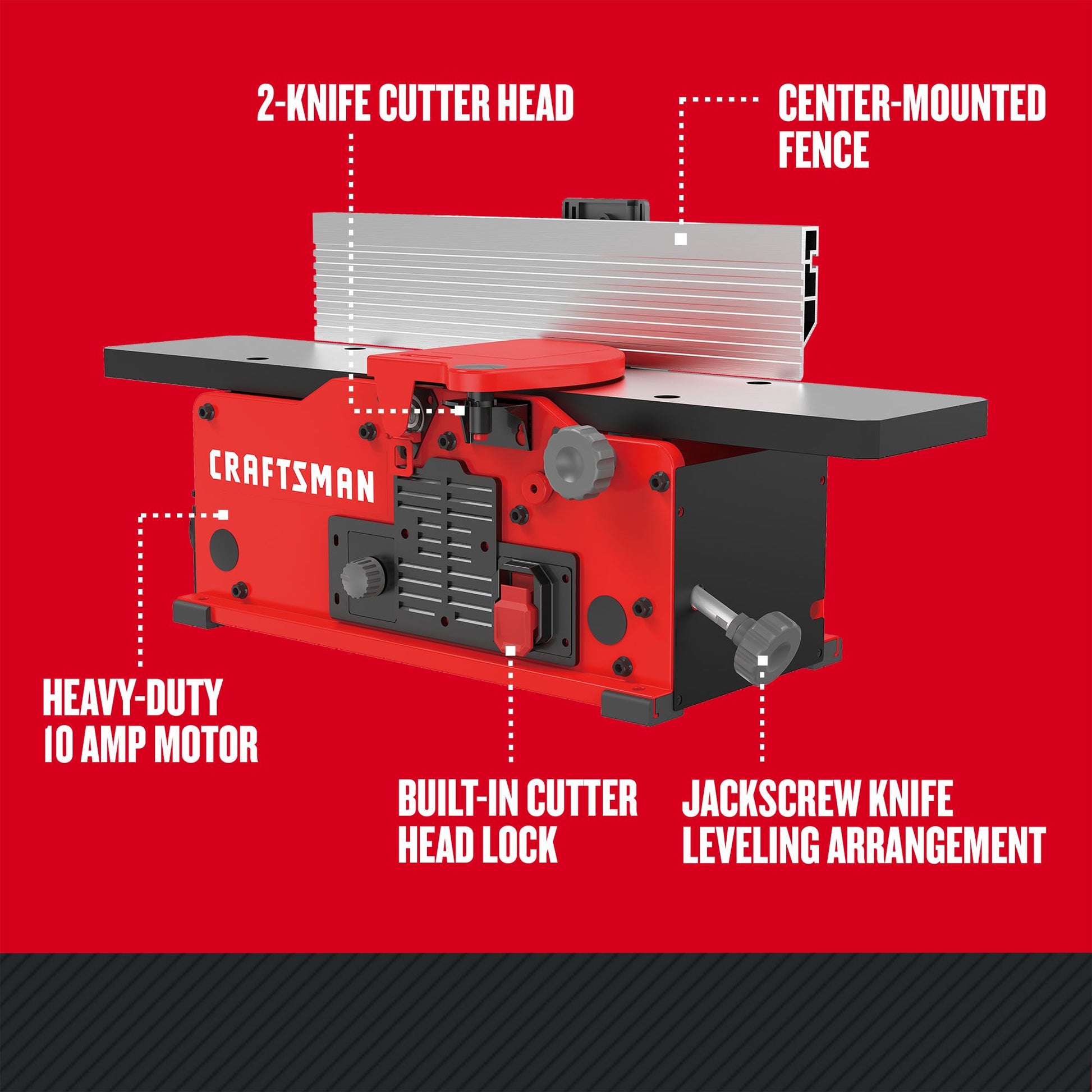

CRAFTSMAN 10 amp bench jointer with 6000 to 11000 RPM speed range. Two knife cutter head with jack screw knife leveling arrangement for easy replacement and adjustment of knives. Built-in cutter head lock facilitates knife replacement and adjustment.
- 10-Amp motor for hard and soft woods
- Dual knife cutter head for maximum stock removal

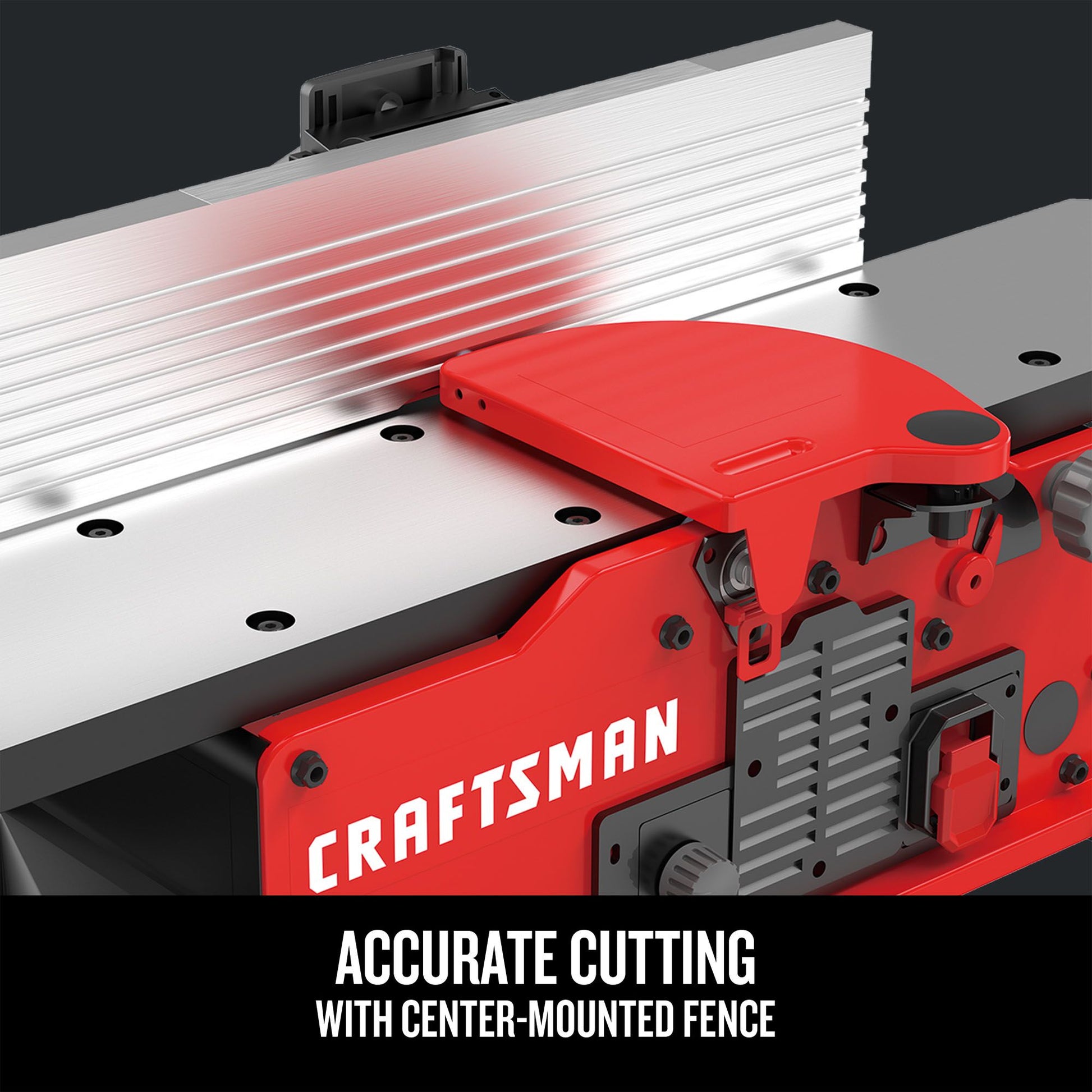

- 4-1/4-in center mounted fence for support and accuracy

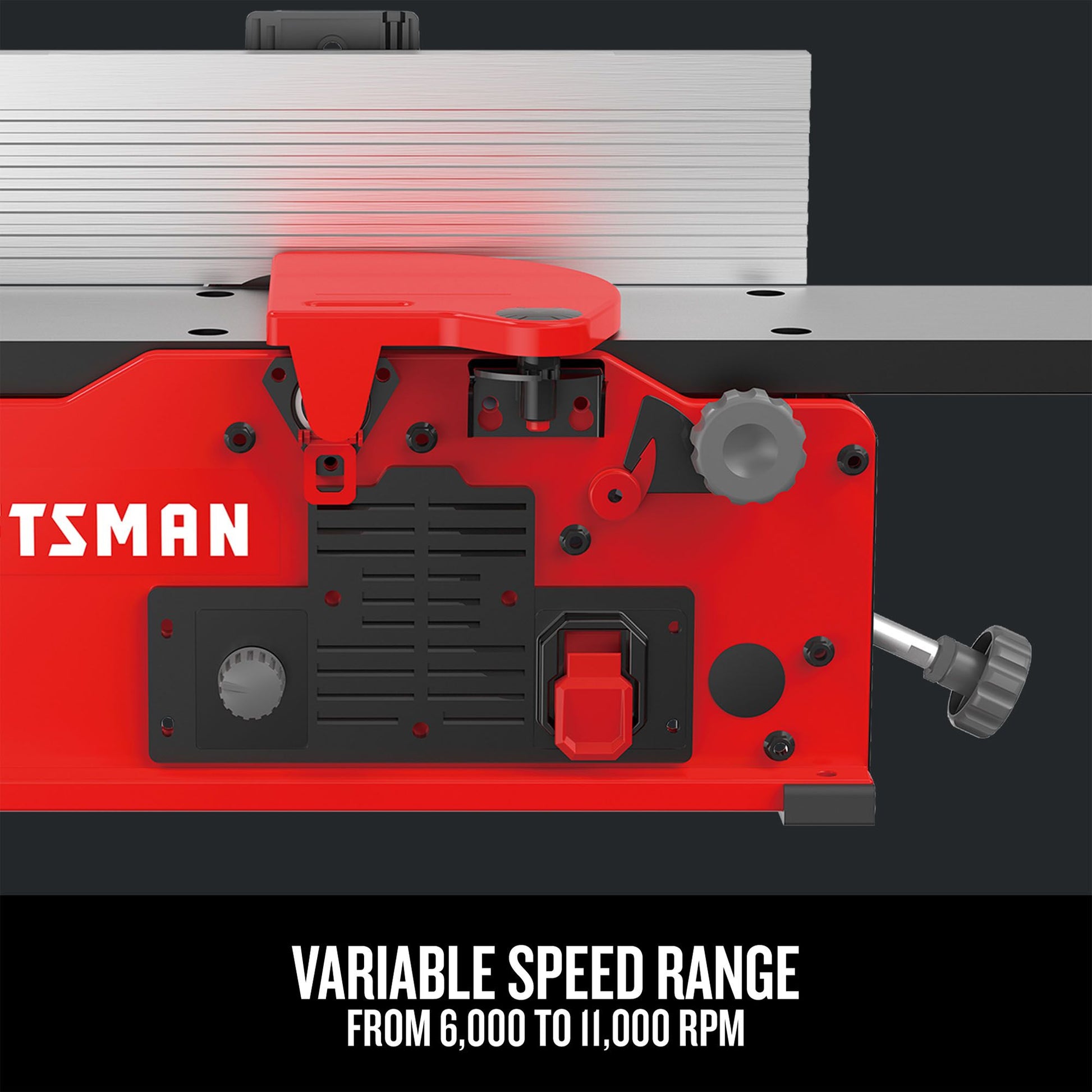

- Variable speed for range of control
Specifications
| General | |
|---|---|
| Color/Finish Family | Gray |
| Features | |
|---|---|
| Accessories Included | No |
| Amperage (Amps) | 10 |
| Blade Material | Steel |
| Dust Collection | Yes |
| Fence Material | Aluminum |
| Fence Tilt | Yes |
| Fence Tilt Range in Degrees | 45 |
| Heavy Duty Stand Included | No |
| Helical Head | No |
| Lock On Switch | No |
| Maximum RPM | 11000 |
| Number of Blades | 2 |
| Positive Stops | Yes |
| Quick-Change Knife System | No |
| Table Material | Aluminum |
| Variable Speed | Yes |
| Voltage (Volts) | 120 |
| Certifications | |
|---|---|
| CA Residents: Prop 65 Warning(s) | |
| Dimensions | |
|---|---|
| Adjustable Depth Stops | No |
| Assembled Height (Inches) | 17.75 |
| Assembled Width (Inches) | 6.5 |
| Blade Length (Inches) | 6 |
| Depth Adjustment | Yes |
| Depth Measurement System | No |
| Fence Height (Inches) | 36 |
| Fence Length (Inches) | 19.75 |
| Maximum Board Thickness (Inches) | 0.125 |
| Maximum Board Width (Inches) | 6 |
| Maximum Cutting Depth (Inches) | 0.125 |
| Rabbeting Depth (Inches) | 0.0625 |
| Table Length (Inches) | 30 |
| Table Width (Inches) | 6.3 |
| Tool Weight (lbs.) | 35 |
| Warranty | |
|---|---|
| Warranty | 3-year limited |
| Miscellaneous | |
|---|---|
| UNSPSC | 27111900 |
